• The panel exhibits a 99% coverage of the sRGB color gamut and achieves a maximum luminance of 500 cd/m².
• Add OSD menu，With power-off memory.

• At the lowest brightness, the kit power consumption is 0.27w
• More display effects and Mixed frame switch.

PRODUCTS INCLUDE:

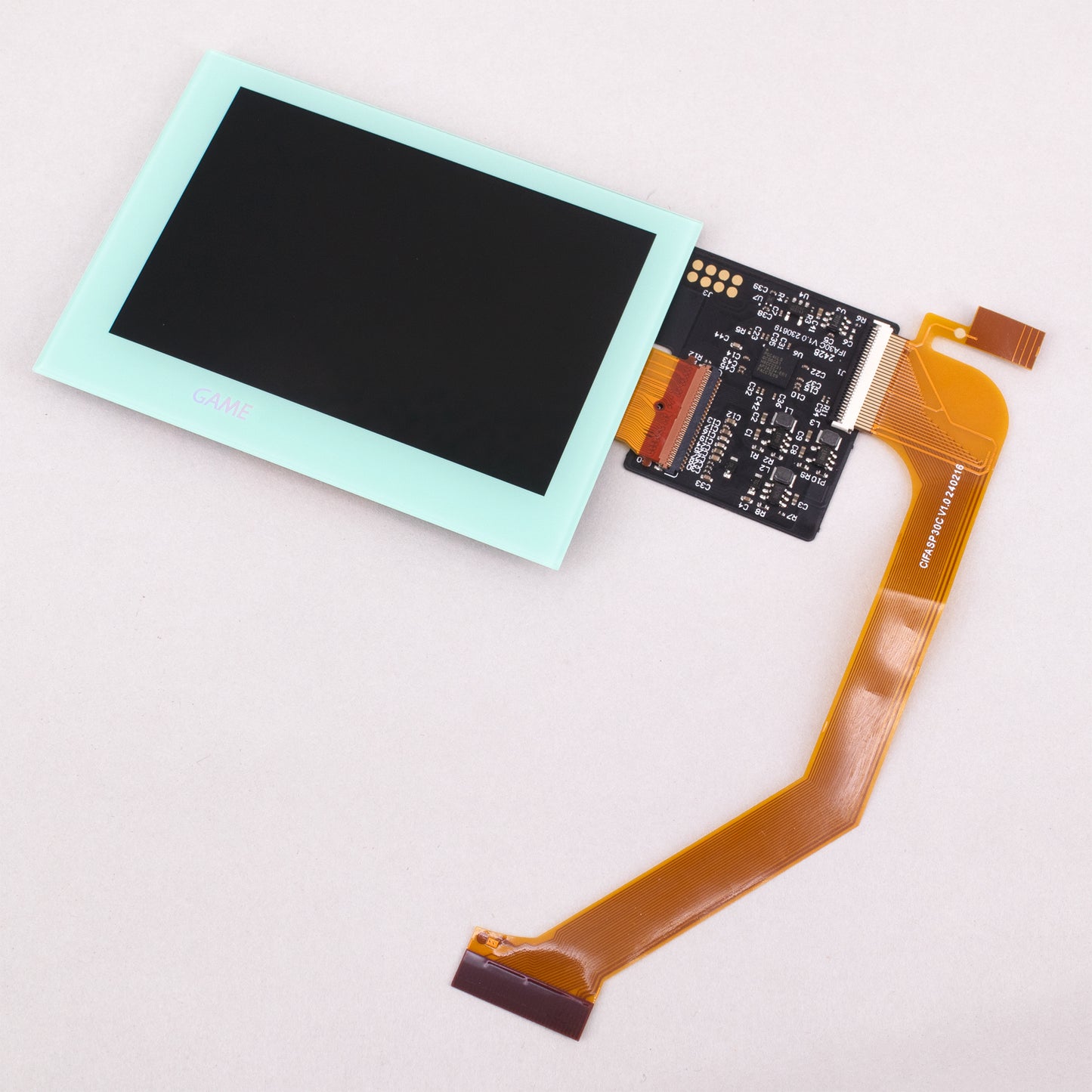

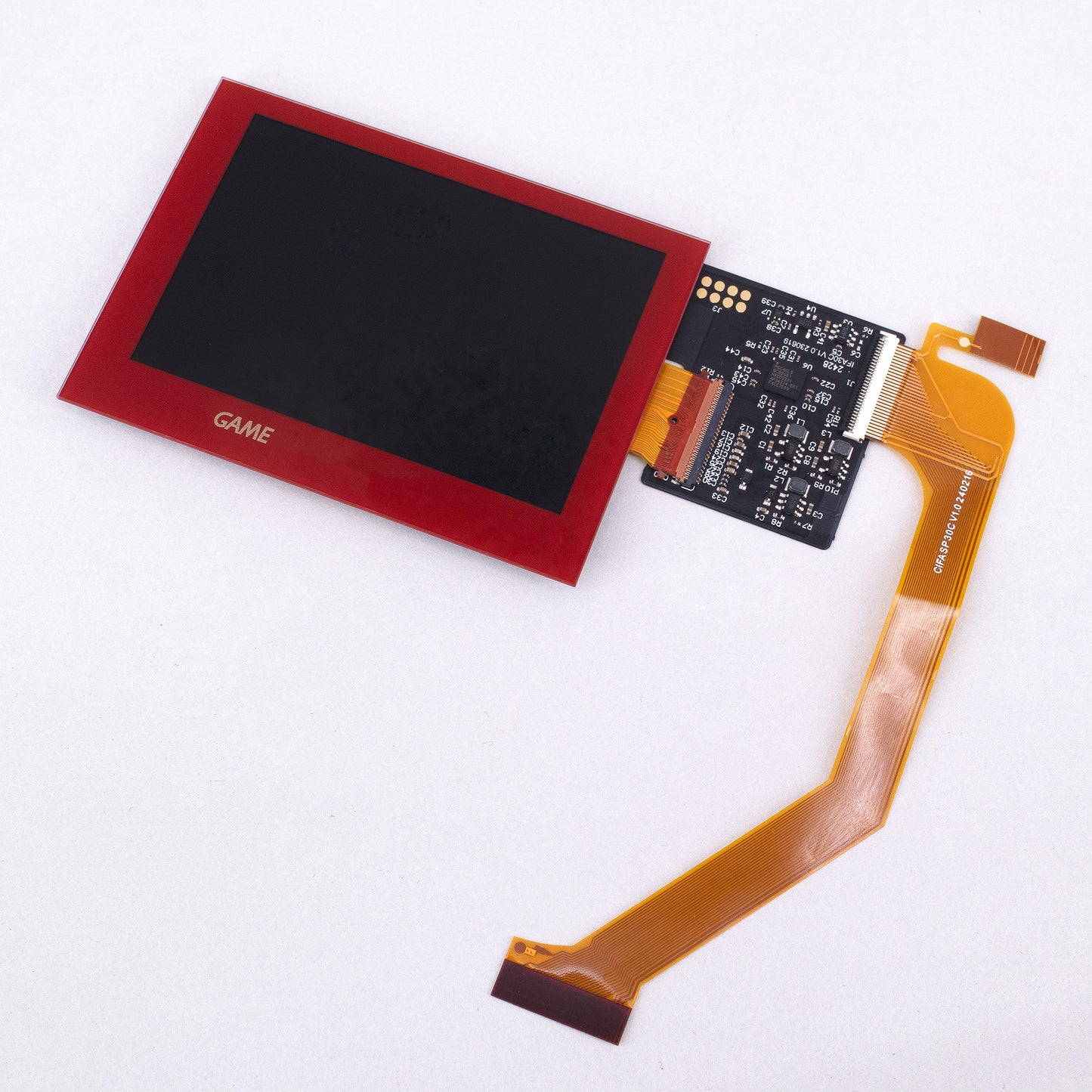

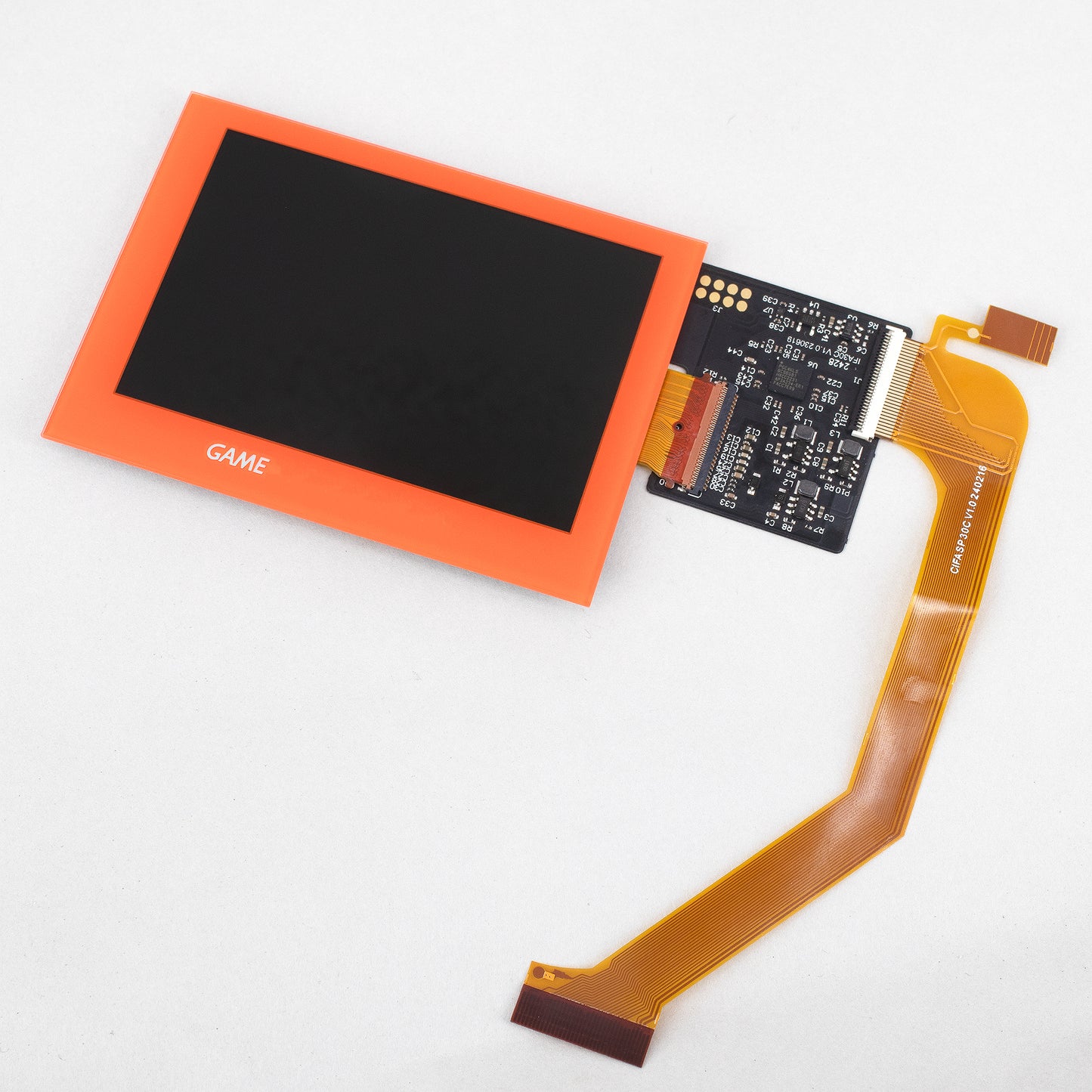

3.0 Laminated IPS M2 LCD                     × 1

Main ribbon                                           × 1

Welding line                                           × 1

NOTES

• All OSD function operations can be done at touch, and welding a physical button is not a necessary option
• Option Black Lens adaptation Original shell can be installed into the original housing（We preprocessed three anchor points according to the original shell).
• Option Black Lens adaptation customized shell can also use our New Mirror Housing（it will come with a special holder).

M2 KIT TUTORIAL
