FPGBC KIT

• Simulating real hardware using FPGA
• Supports hardware cartridge
• Features USB-C compatibility for easy firmware updates（Only supported WIN system）
• Higher sound quality speakers

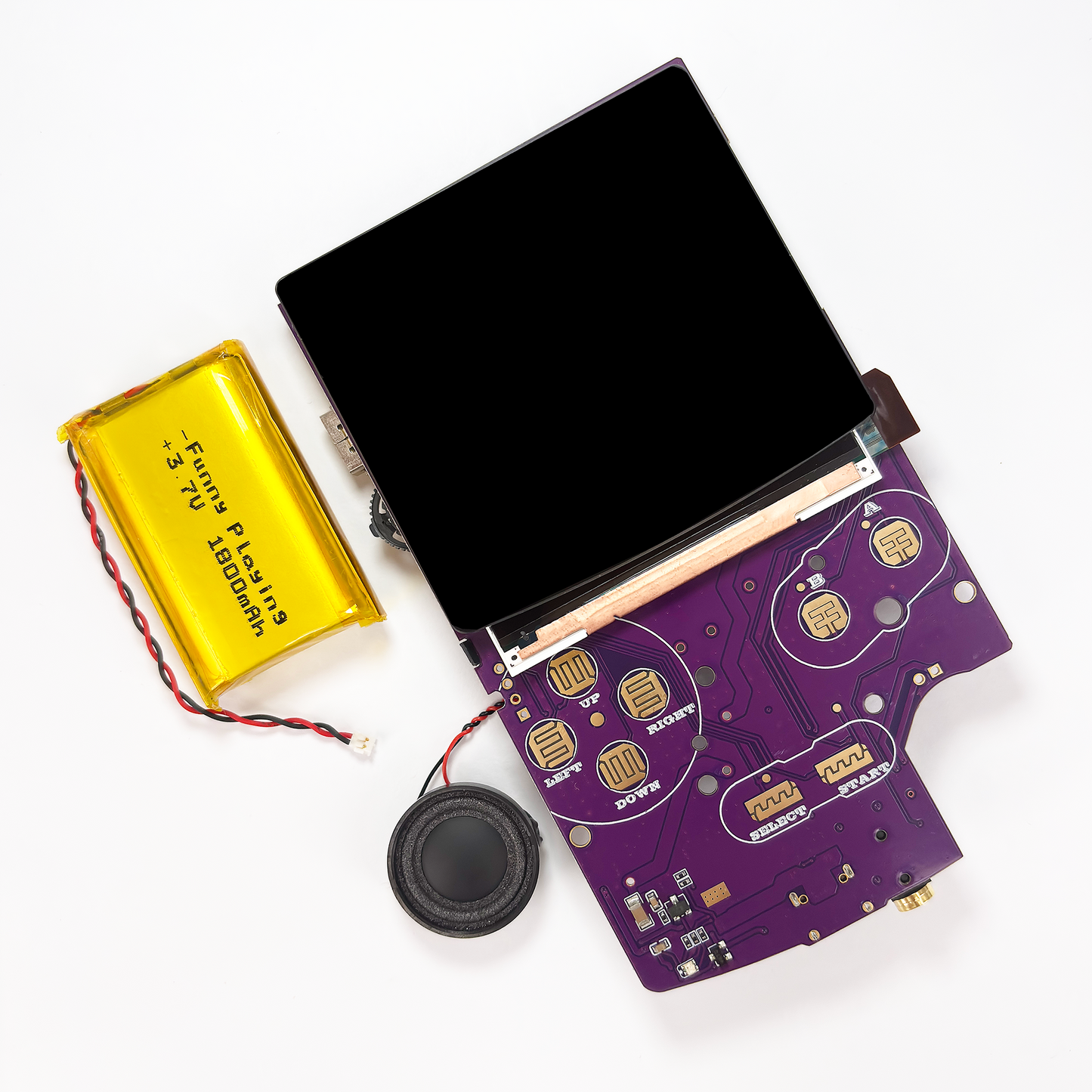

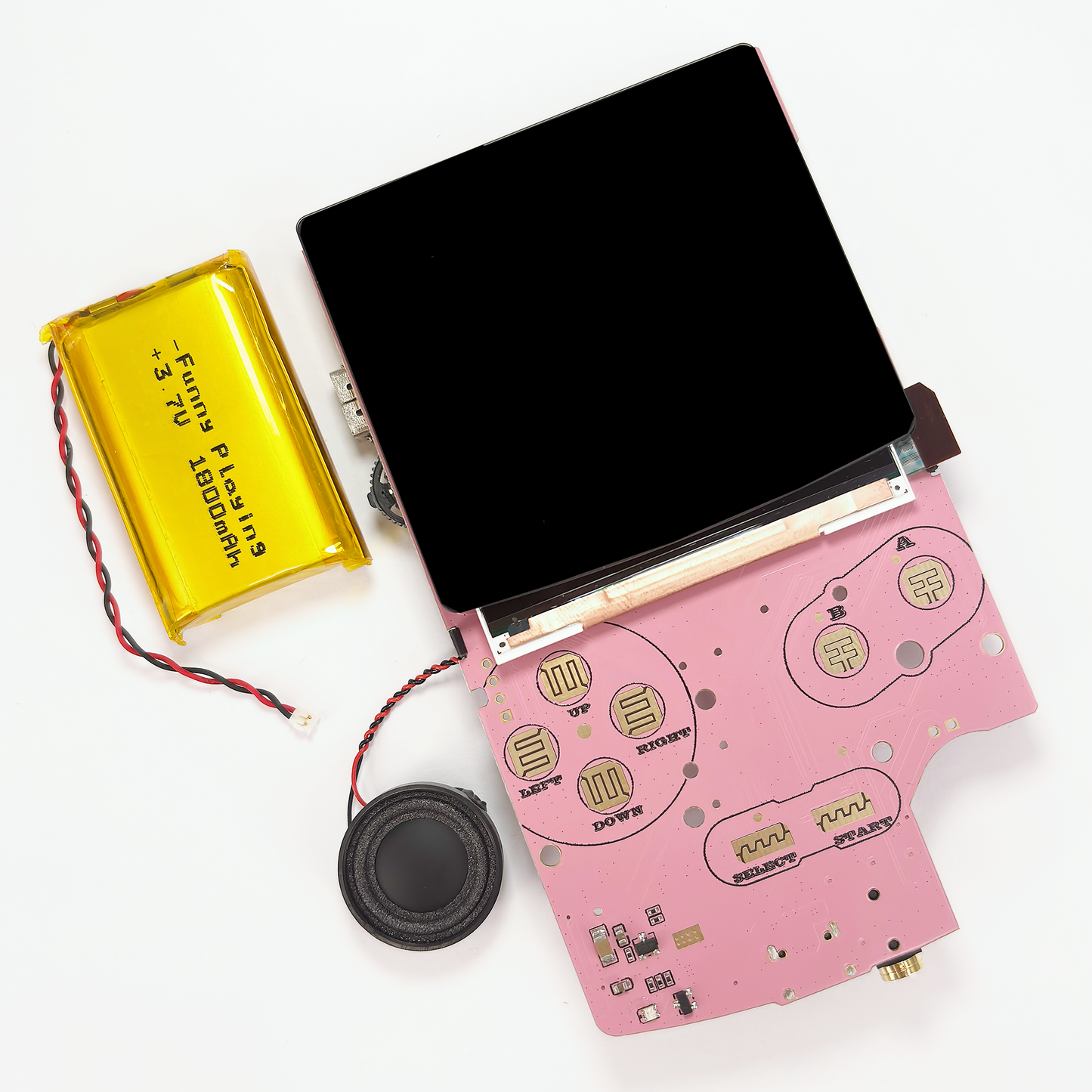

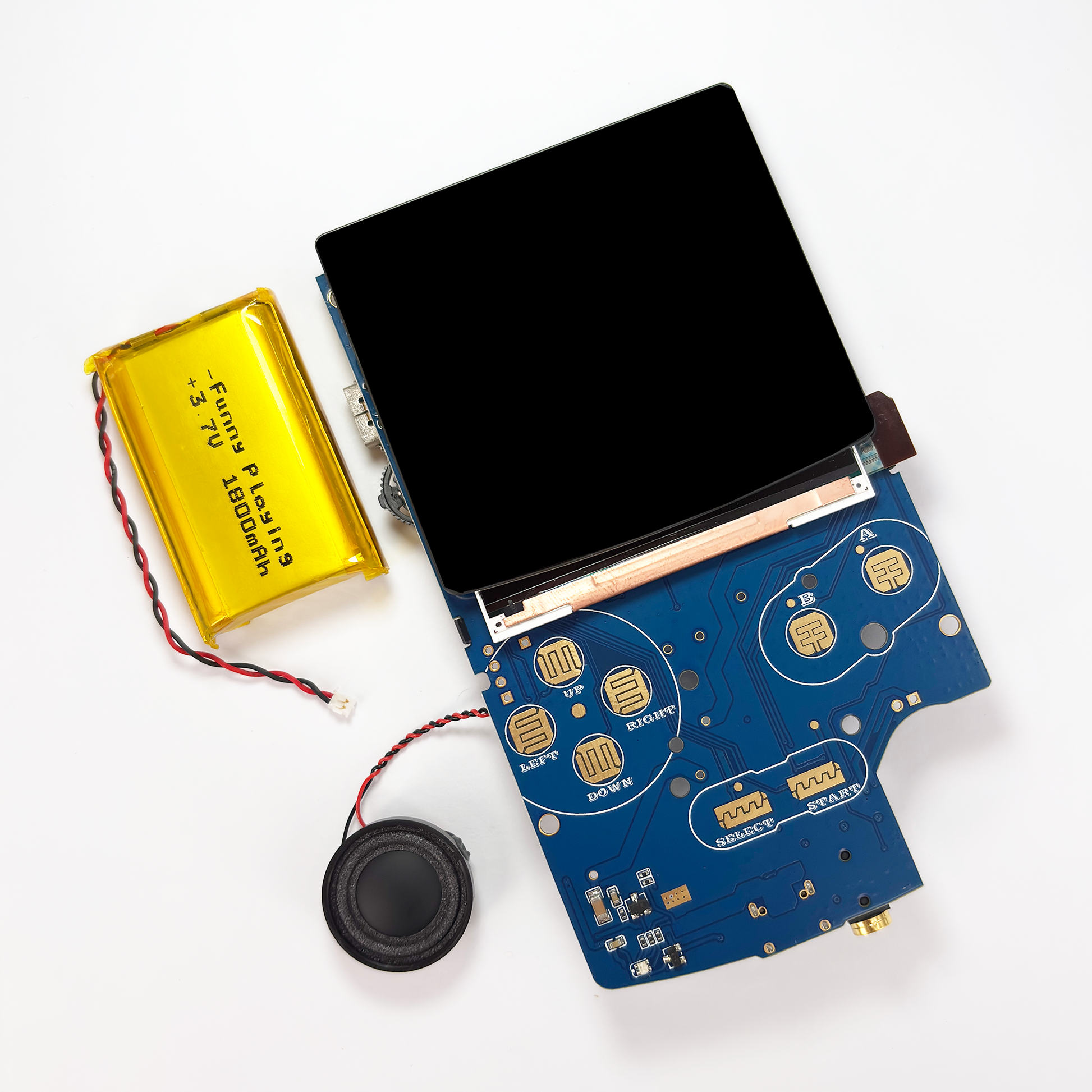

"FPGBC KIT" INCLUDED

• 1 x FPGBC PCB
• 1 x Panel（Including adapter ribbon）
• 1 x 2w speaker
• 1 x 1800mAH battery

NOTES

     The following components will need to be purchased separately:

      TYPEC housing
      GBC buttons
      GBC membranes

     GBC button LED KiT can not work with FPGBC.

• The kit only supports dedicated housing
• Some burning carts do not support
• Unable to use AA battery power supply ,Only supports lithium battery
• Clock adjustment due to panel limitations Maximum 1.25 speed
• If you have no installation experience, it is recommended to buy the assembled FPGBC CONSOLE.

WARN

• Turn off the power switch before installing the panel ribbon.
• Don't touch the back of the panel against the pin of the card slot when testing.

This will cause damage to the panel and motherboard.

Press the battery plug down to the bottom.

Firmware

Hardware version V1.0 Latest firmware versions can be found HERE

Hardware version V1.1 Firmware

V1.02 DOWNLOAD

V1.04 DOWNLOAD

V1.06 DOWNLOAD

V1.08 DOWNLOAD

V1.09 DOWNLOAD（Test version，Recommend upgrading version 1.08.  ）

V1.10 DOWNLOAD （If you encounter problems saving, you can use version 1.08. ）
