Screen display area increased 25% than the original.
Built-in 5 display effects.
IPS panels are characterized as having the best color and viewing angles.
LCD and ribbon power between 0.29W and 0.68W
The maximum brightness of the panel is 230 cd /m² (Min.).

PRODUCTS INCLUDE:

IPS LCD × 1

GBC Ribbon × 1

20 mm wire × 2

5 mm wire × 1

NOTES

PLEASE TEST THE SCREEN BEFORE PUT INTO THE SHELL. If the screen is damaged after installation, we will not provide after-sales service.
At room temperature of 20℃, the backlight of LCD is set to the fourth gear. The test results are as follows：

The minimum starting voltage for the original game card is 2V

Use EZ Flash Junior burning green card minimum starting voltage is 2.05 V

(Minimum starting voltage undergoes a change in temperature changes，We recommend to use 1.5 v voltage lithium battery)

The built-in power management module of GBC motherboard is very inefficient. We design the power management module of LCD on the ribbon, so we need to weld a power cord to the ribbon and get power from the third pin down from the switch of the motherboard.
The original display size of GBC is 43×41mm
The IPS LCD display size is 49.5 × 44.5mm
This means you need to cut the display frame of the screen to make it suitable for IPS LCD
The leads of the START and SELECT buttons are retained on the ribbon.
START+touch=increase brightness
SELECT + touch = decrease brightness
Press START and SELECT simultaneously for 1 second to switch the display effect.(Short press the sensor button to cycle 7-segment brightness adjustment, long press to switch the display effect.)
Built-in 5 display effects:
Full pixel copy display (display the highest brightness, gorgeous and concise)
Classic GBC display (perfectly restore the original display effect)
Classic RGB display (perfectly restore the original display effect, and the pixel gap looks smaller, the brightness will be slightly darker)
RGB display (closest to the original display, but the brightness is very low)
Grid line display (close to the display effect of DMG)
It is inevitable that there will be glue in the position of the lamp hole, which can be cleaned manually.

About 2.0

Modified the function of the SELECT+START combination key on the original basis.Long press the key combination to enter the function area, long press again to exit.
Added logo backlight display and color change.
Added the function of adjusting the position of the image window.
Laminated the panel and lens

About 2.1

Changed the position of power supply.
Added a built-in touch antenna.

2.5D lens, the edge of glass is radian, it looks more three-dimensional.

Special reminder: Laminated panels are only recommended for installation on our customized GBC shells. We do not recommend modifying on the original shell, it is very complicated.

Historical Record

2021-06-25： The point COM is the test point, it can't ground or power.

2021-06-06： Add the GBC 2.0 Kits.

2021-09-20： Upgrade to 2.1 Ribbon.

2022-02-20： Add 2.5D lens, the edge of glass is radian, it looks more three-dimensional.

2022-04-25：

Modified the function of the SELECT+START combination key on the original basis. Long press (3 seconds) the key combination to enter the function area, long press again to exit. Long press (5+ seconds) to alternate logo mode.

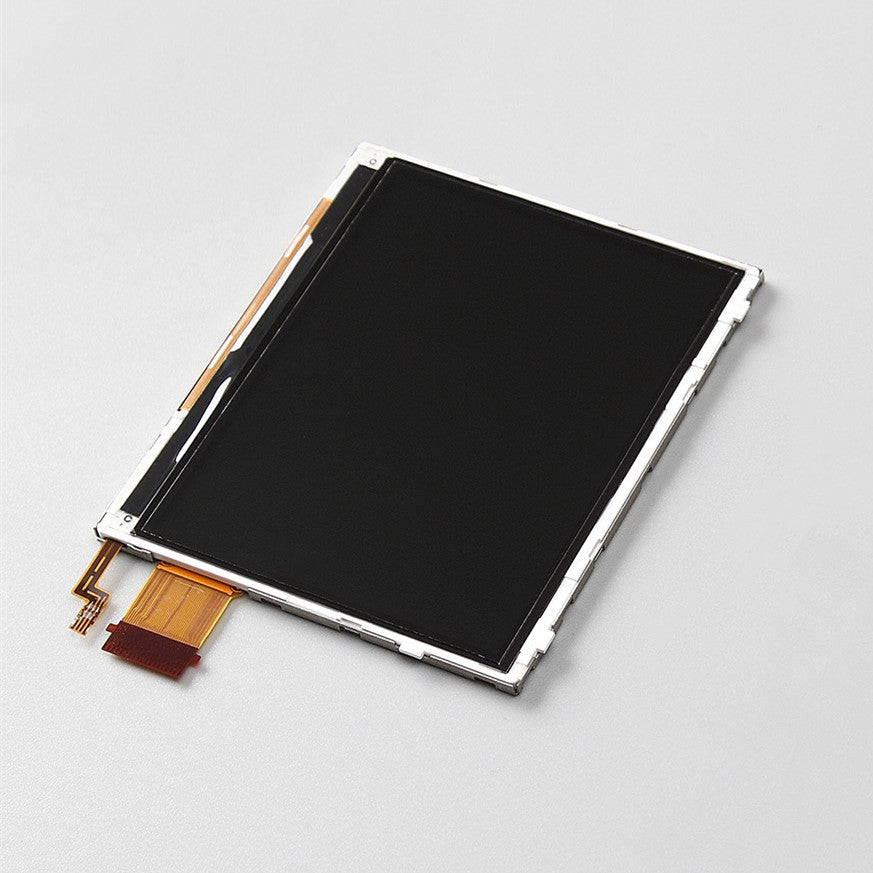

GBA ITA TFT Replacement LCD
