- Laminate panel，No dust ，More realistic display effect.
- Use the lower screen of DSI to transfer, 240*160 display, the display size is the same as the original panel
- At the lowest brightness, the kit power consumption is 0.15w
- It has the same display effect as AGS-101, without ghosting, better colors and brighter backlight.
- It has a memory brightness function and can adjust the partial display window.
- Perfect support for NES game display
TFT LCD × 1
Main ribbon × 1
32pin ribbon × 1
40pin ribbon × 1
Welding line × 3
Laminated Bracket × 1

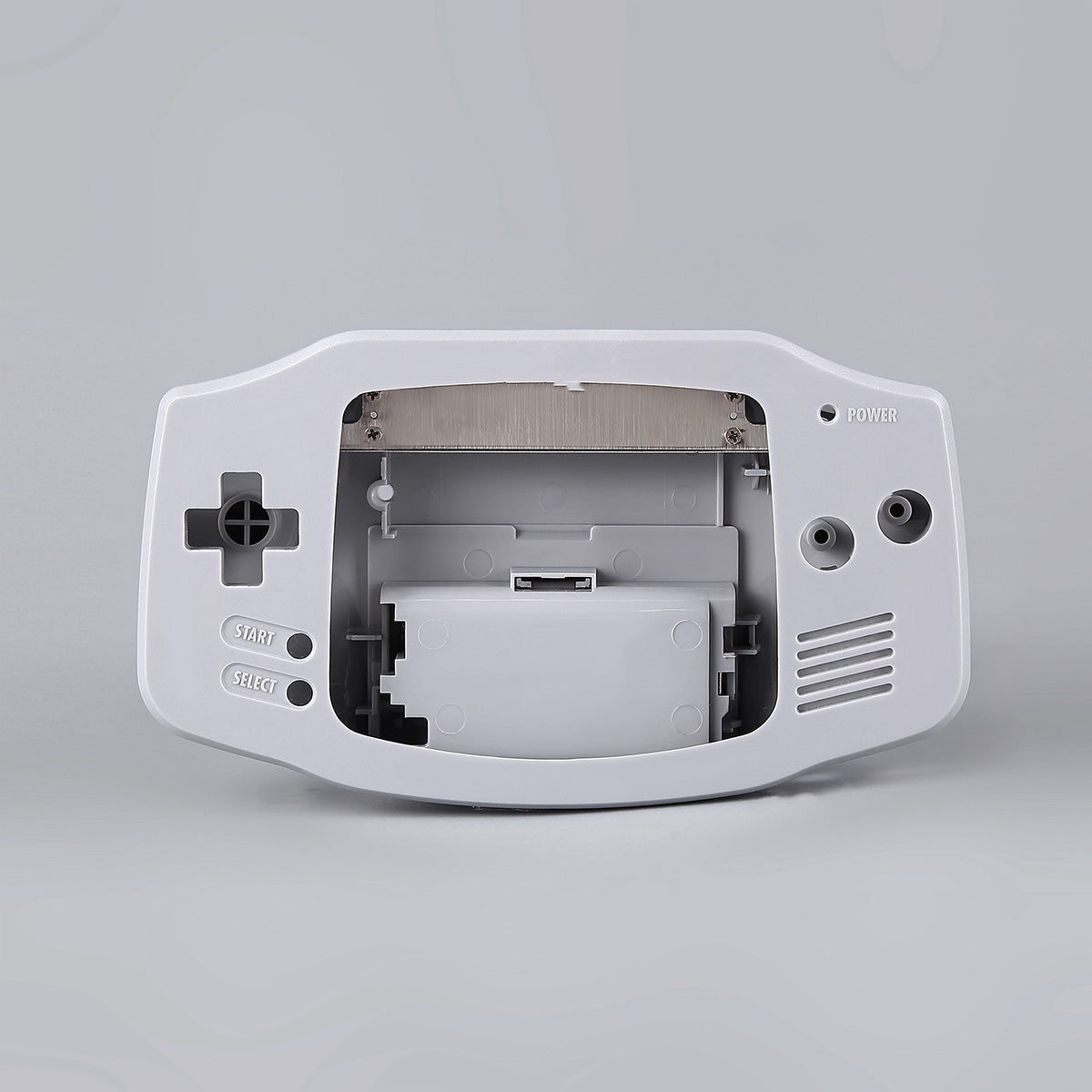

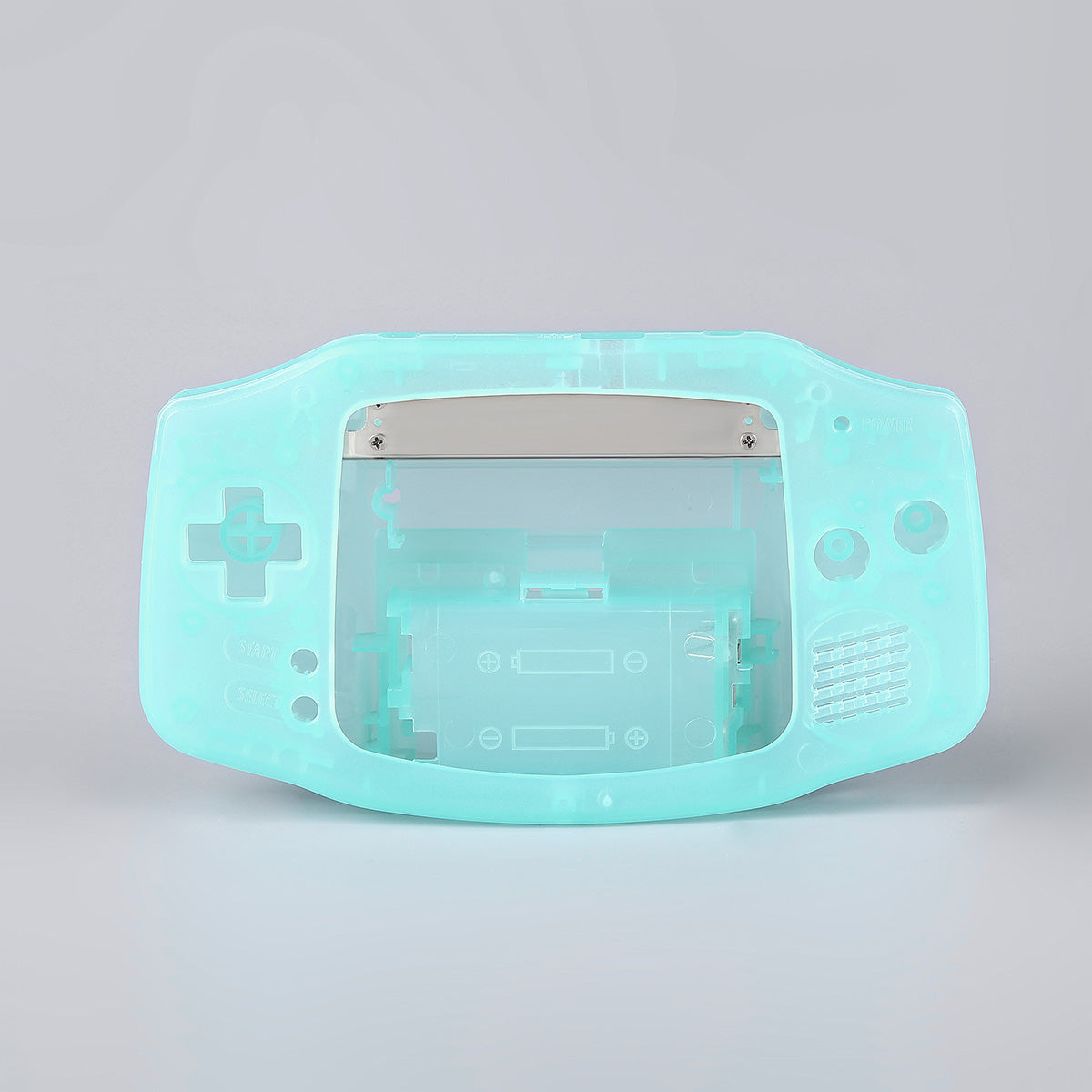

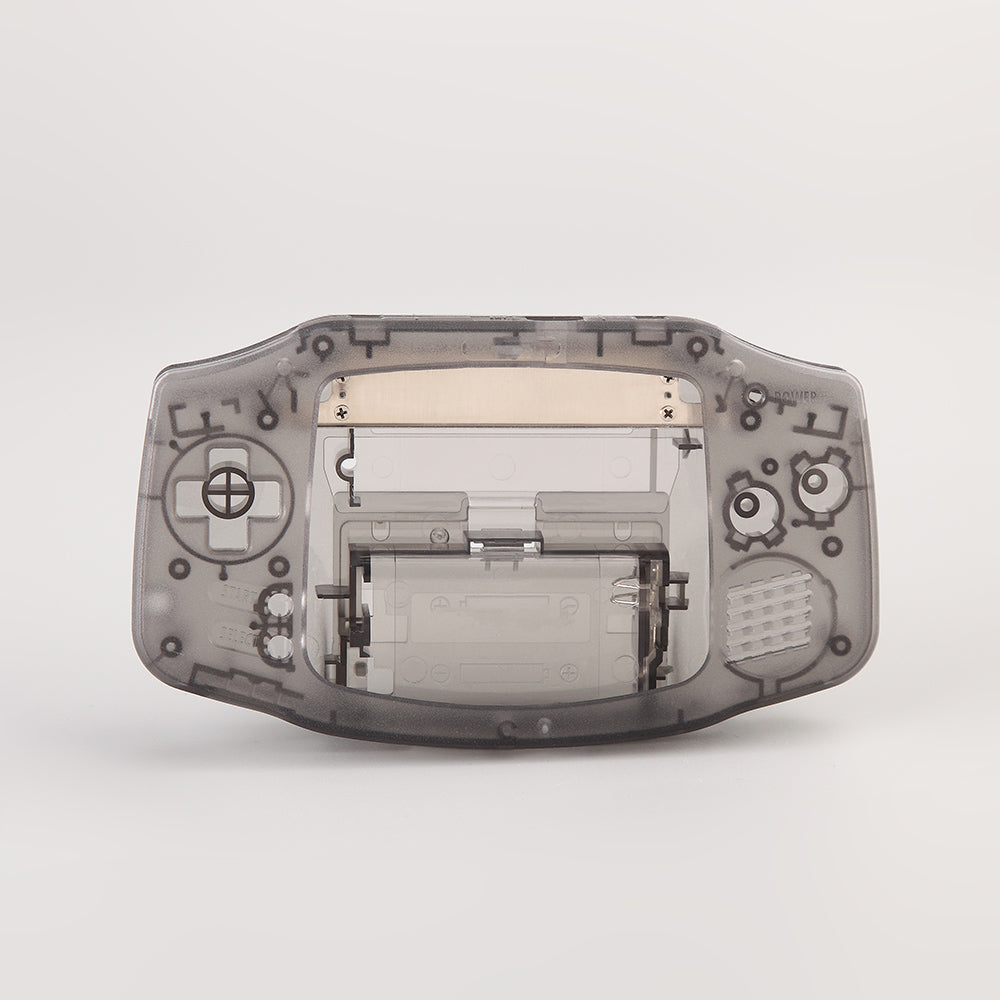

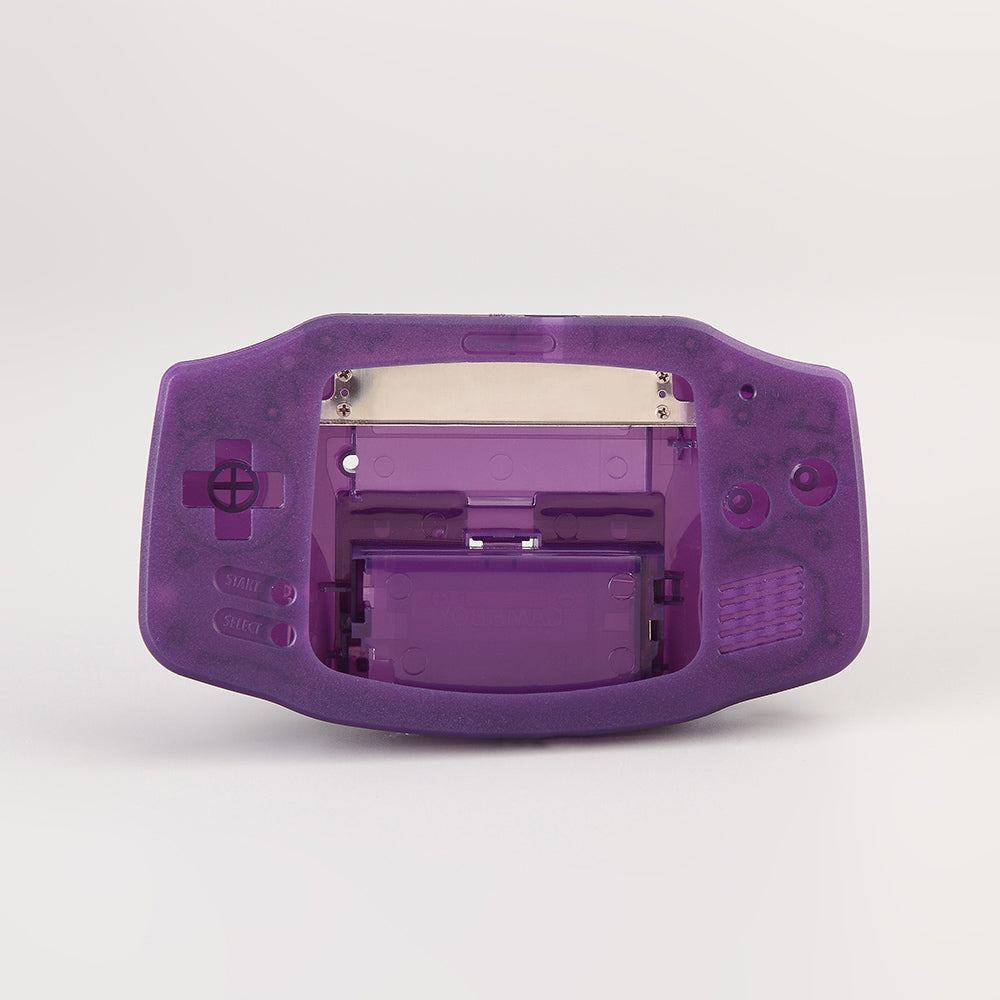

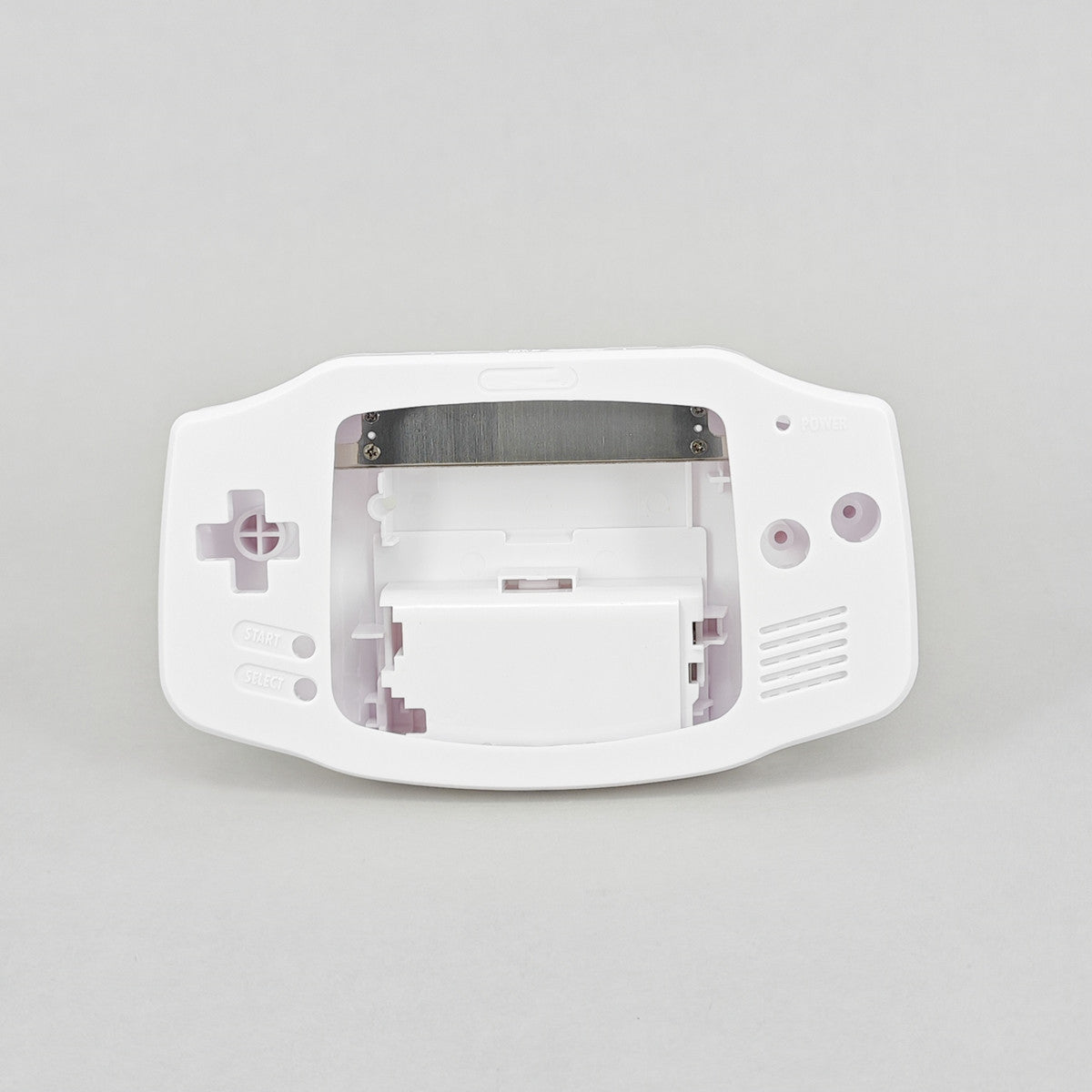

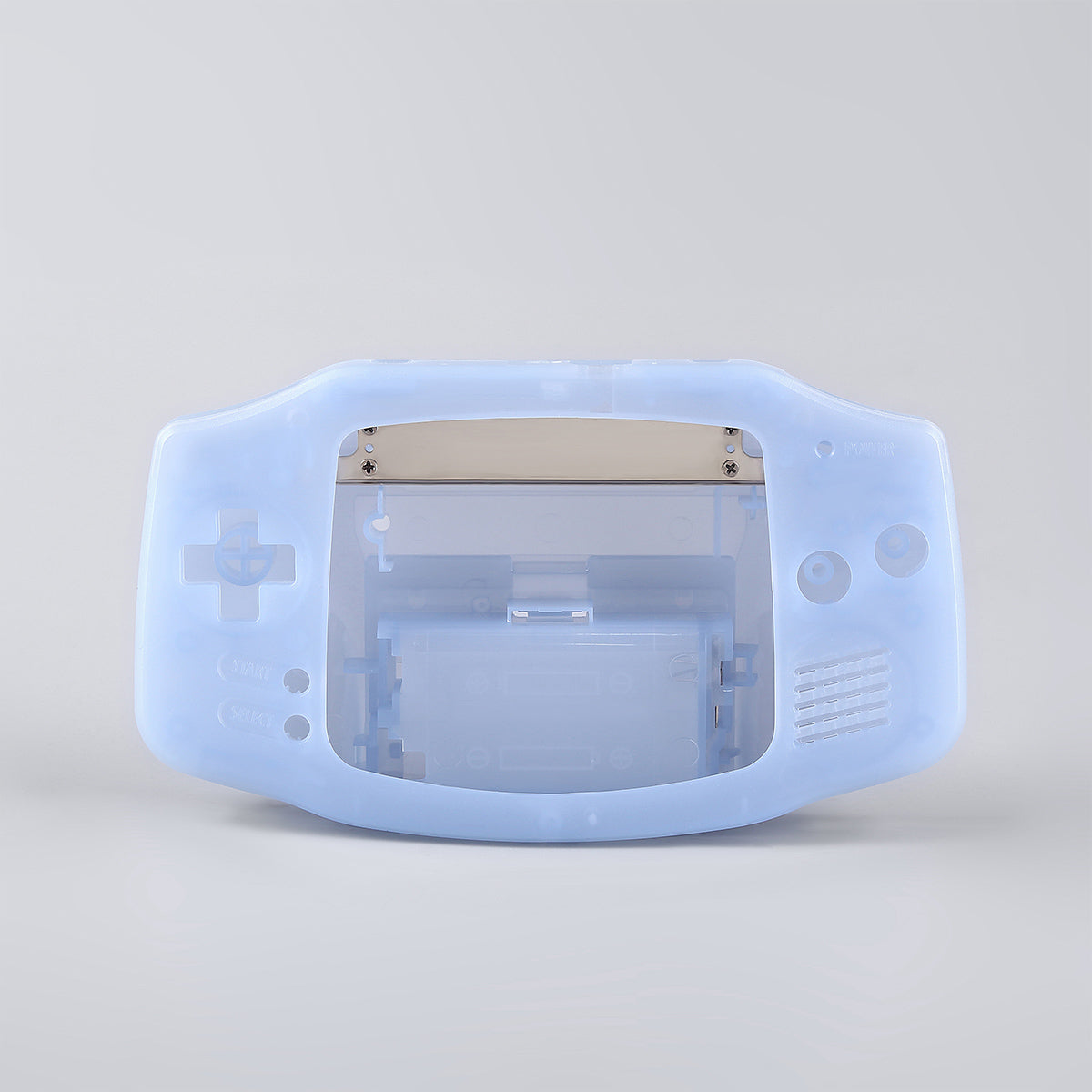

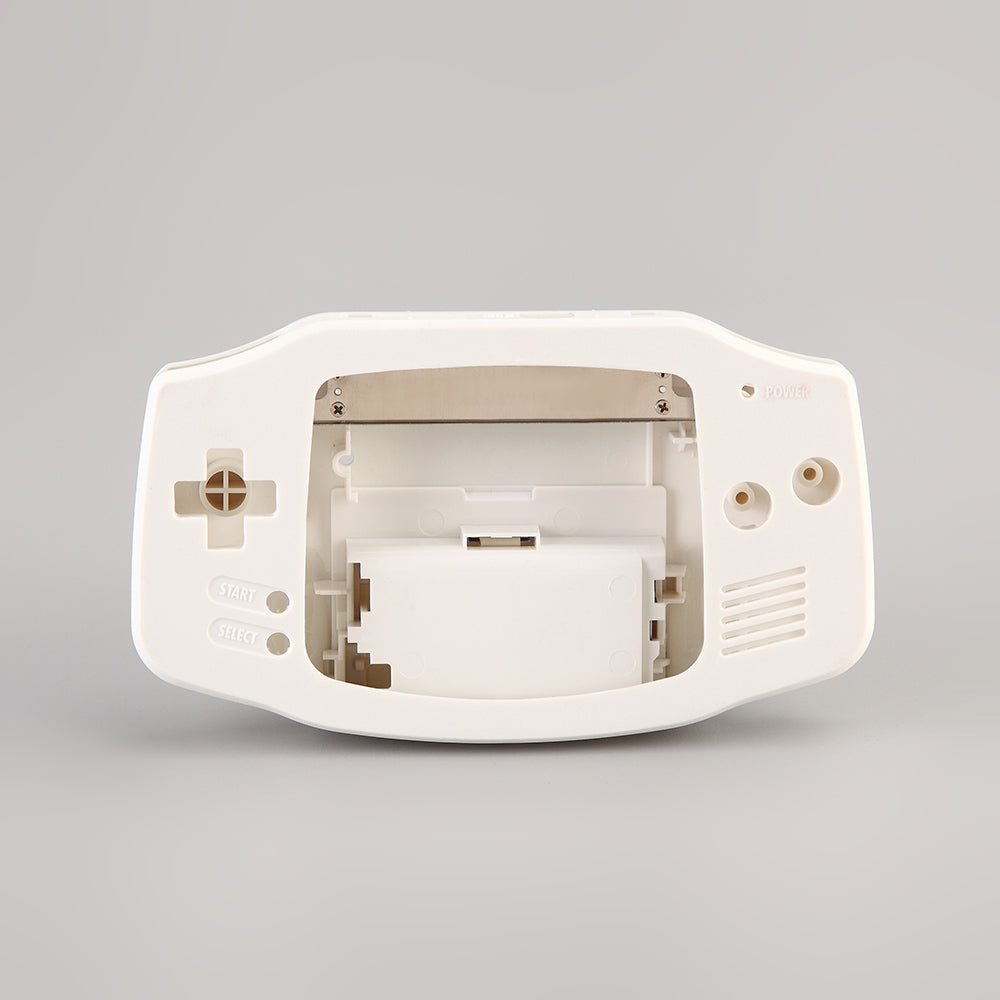

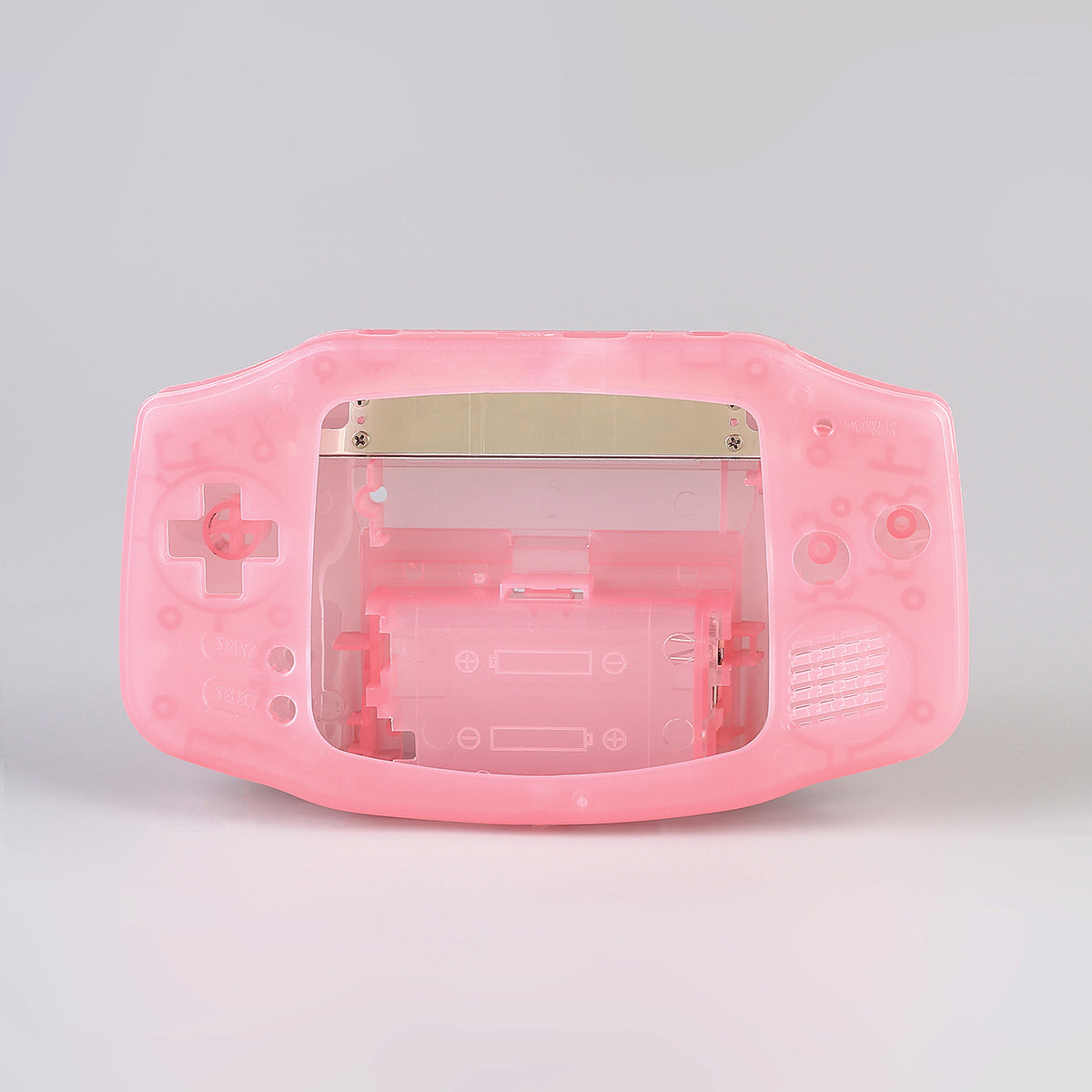

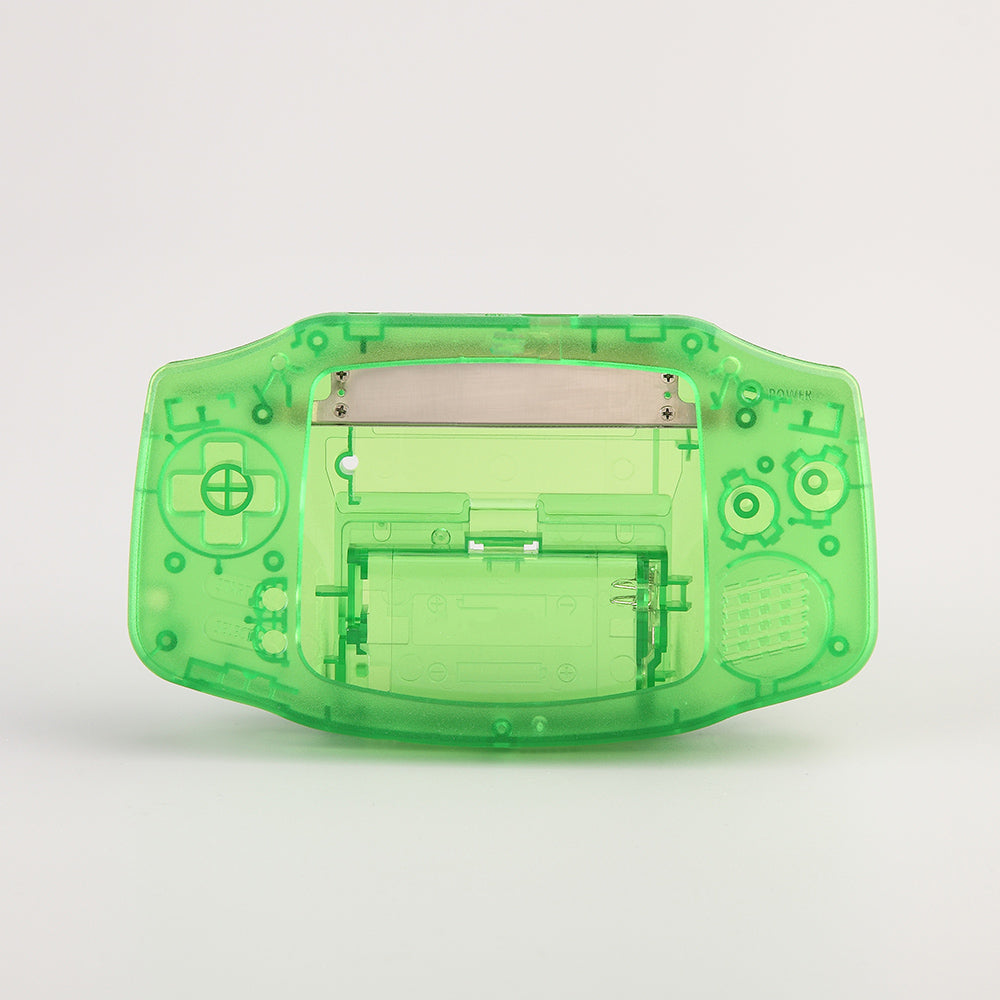

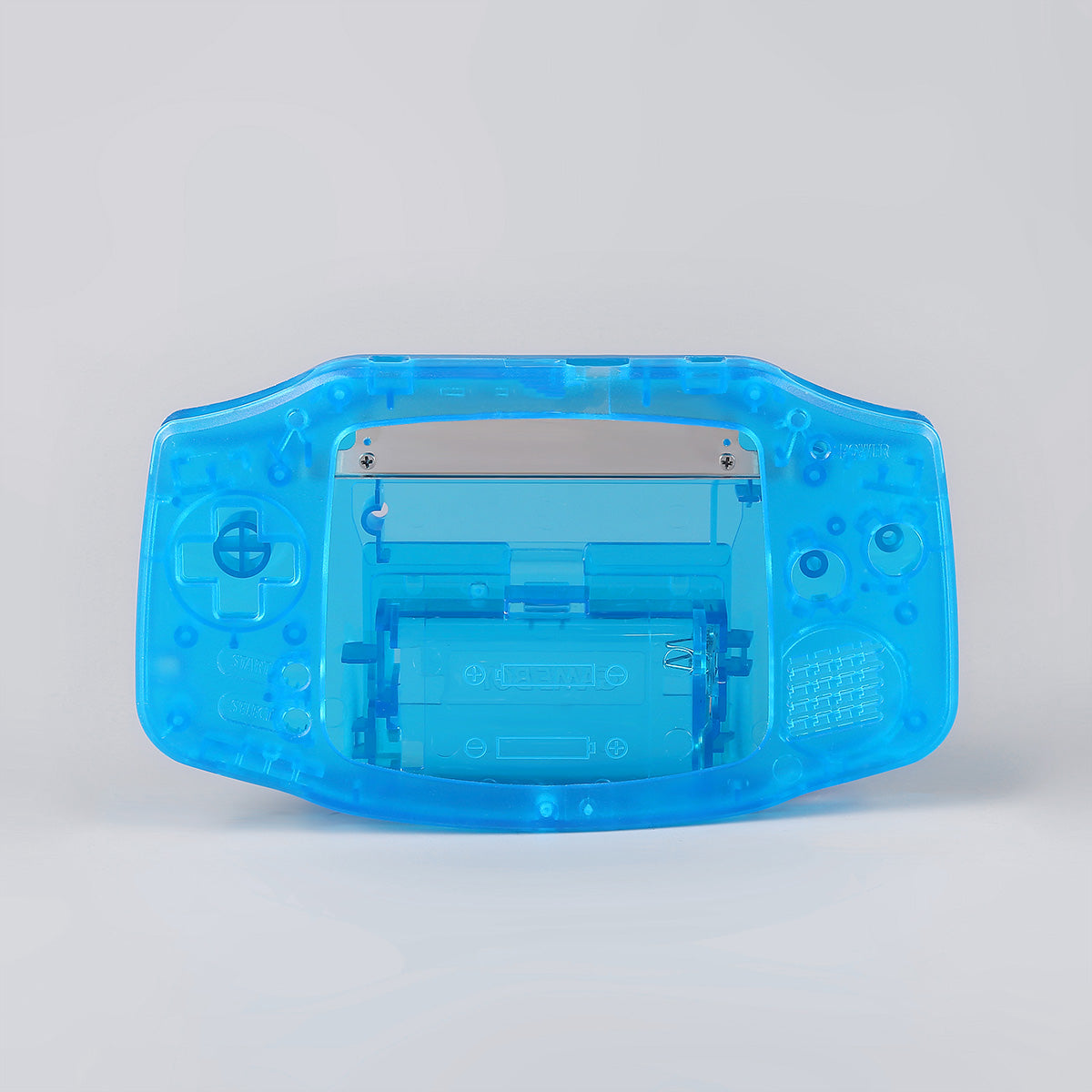

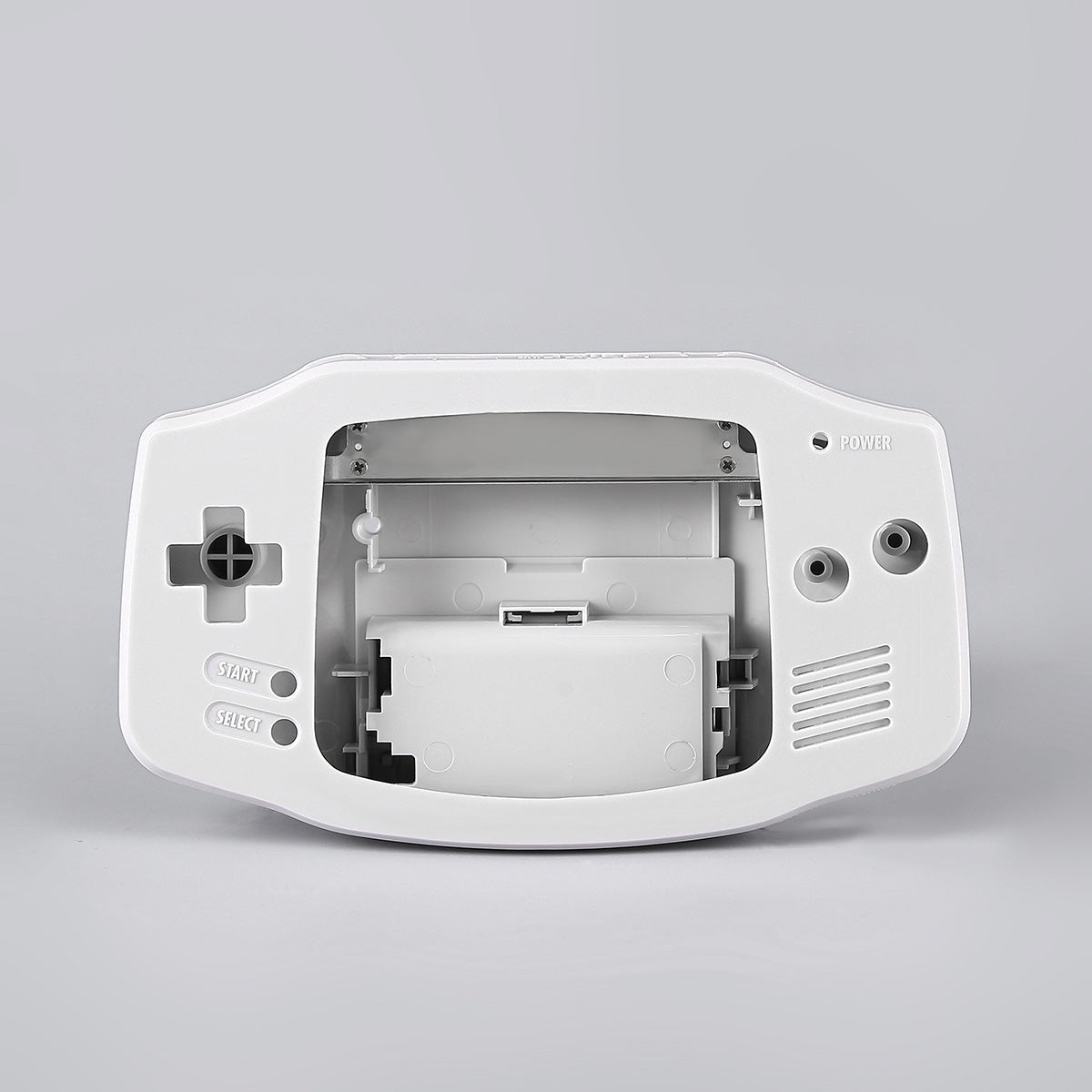

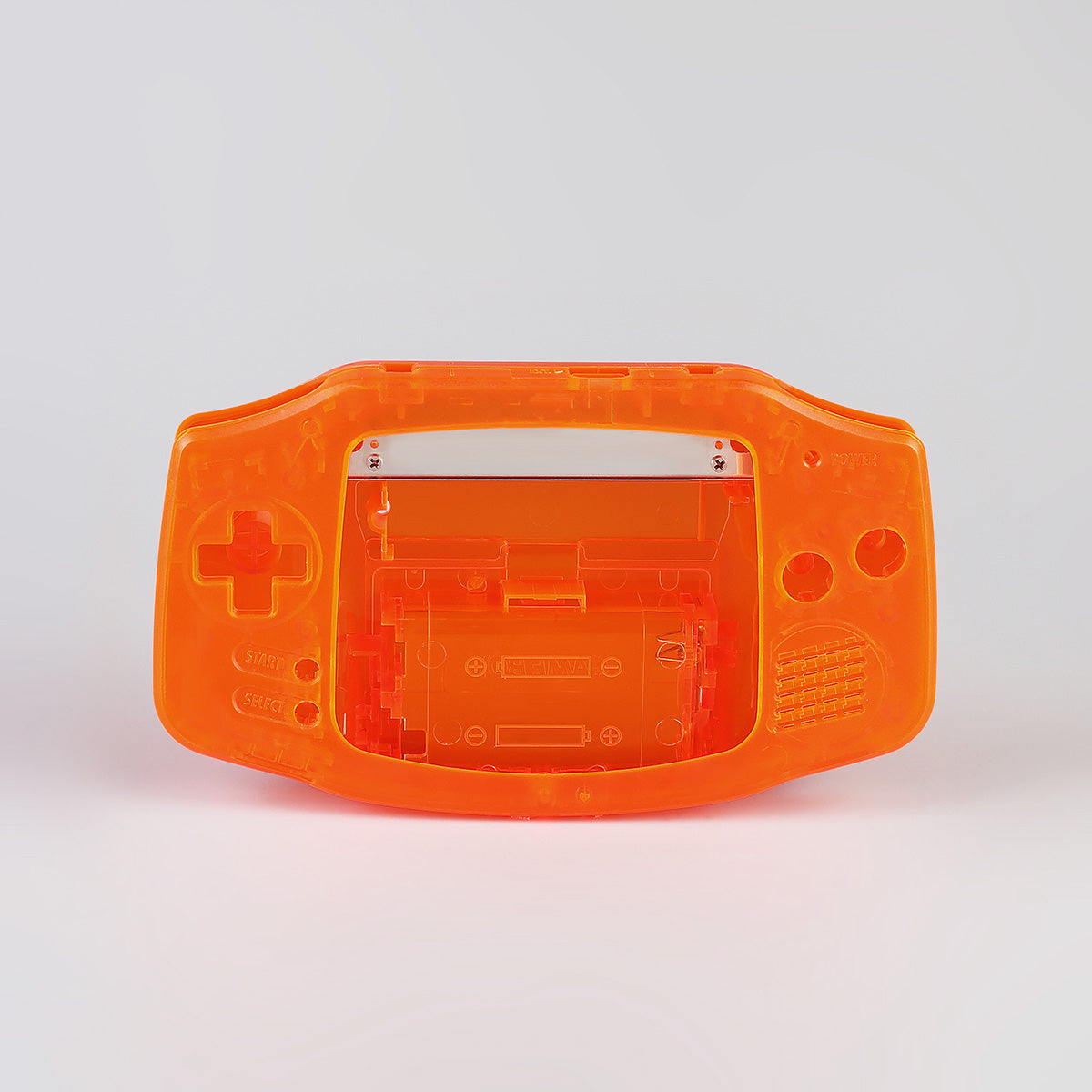

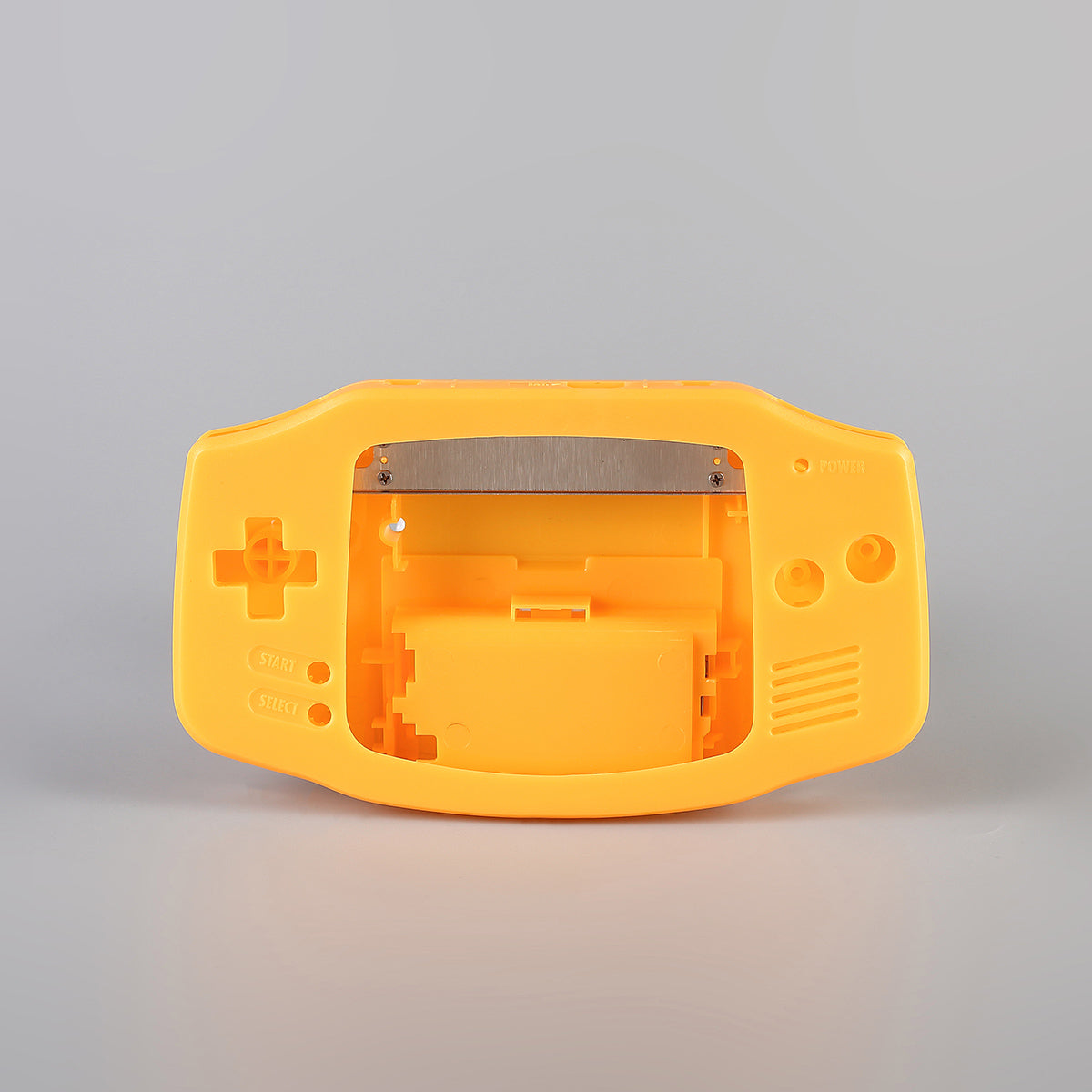

- Laminate kit is only applicable to laminate housing
- 40pin motherboard needs to remove C54 capacitor
- If you adjust the display window, you need to weld the select L R button
- The left and right viewing angles are almost visible，The following perspective is general
- Laminate panel is supported by motherboard，It is normal that water ripples will appear around the pressing panel
2023-02-08： Added OSD and FRM , Added Re-optimized touch interaction logic
Long press Two seconds to open OSD function Enter the menu and press and hold for one second to switch the selection
Welding SEL Press and hold for two seconds to enter OSD , Enter the menu and press SEL and hold for one second to switch the selection
